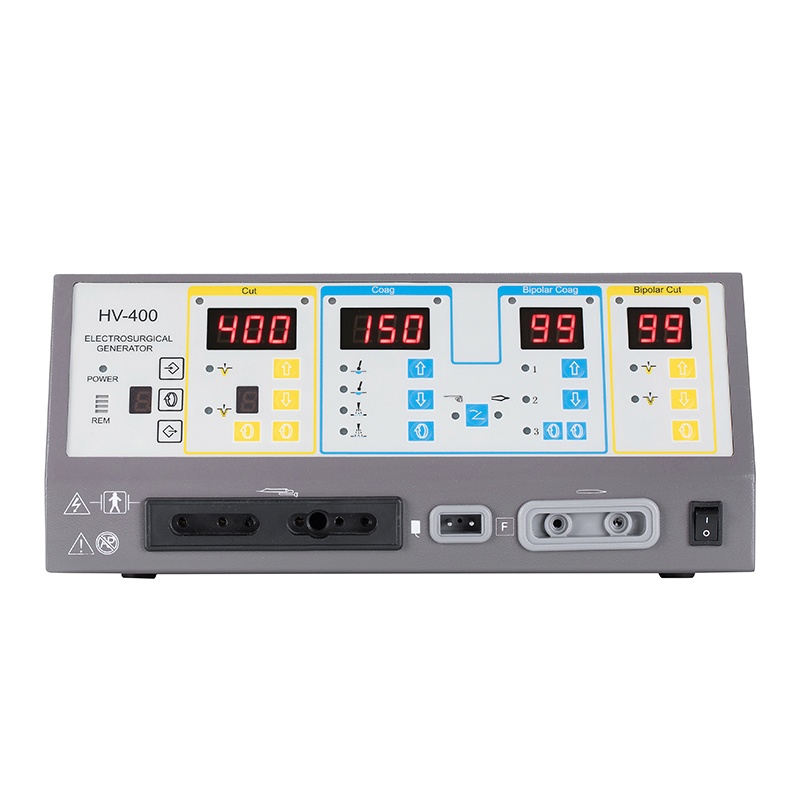

HV-400 Electrosurgical Generator

Intelligent Device System
The intuitive design and user-friendly set-up of the AHANVOS Electrosurgical Generator(diathermy)for us in the modern operating room, it features both monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.

Characteristics:
Microprocessor controlled Electrosurgical unit designed for conventional electrosurgical procedures with the ability to automatically adjust, designed for various operations.

Activation:
Designed to perform cutting and coagulation during surgical procedures,  output activated by handswitch or Footswitch

 REM(Return Electrode Monitoring)
Return electrode (for Monopolar) with quality monitoring system(REM).
This REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, at the same time with Audible and Visual Alarms

Automatic self-test
When switch on the machine, it will start automatically self-test routine prior to operation.

Monopolar Cut
-Multi Monopolar outlet, 3-pin (4mm) outlets and Laparoscopic Microphone head (4mm, 8mm ) outlet
Different effects for cutting modes , pure cut for fast tissue dissection, while blend cut with a slight coagulation effect.

Monopolar Coagulation
Different coagulation modes provides precise, moderate, enhanced, contactless coagulation effects
Possibility of argon plasma coagulation

 Bipolar
Cut with different levels of haemostasis, urological cutting
Coagulation with Forceps for contact coagulation without sparking
Two Pencils Work Simultaneously
It can meet the special surgeries like Heart bypass operation and etc,which ensure two users can operate respectively without interference.
Time Control Feature
There is time control feature under bipolar coag modes.Time output rang from 0.1 to 2.0 seconds, which can be used for much delicated surgeries like Neurosurgeries and etc.
Memory Records Features
Memory program that allows customize settings for different interventions and surgeons.

Compatible with other Equipment
Argon gas module.
Optimum Smoke Evacuation System
Multilanguage Available
Language options: English, Spanish, Portuguese, Turkish and etc.

Application of Use
General Surgery;Gastroenterology, Dermatology;
Vascular Surgery;Obstetrics and Gynecology
Heart/Thoracic Surgery;ORL/ENT;Minimally Invasive Surgery(MSI)
Cerebral surgery;Neurosurgery,Orthopedics&Plastic Surgery;
Trans Urethral Resection(TUR)and etc.
Certificate
Machines are qualified by internationally recognized construction standards such as: CE, FDA, ISO 13485, ISO 9001.
