(an evolved 5-diff hematology analyzer)

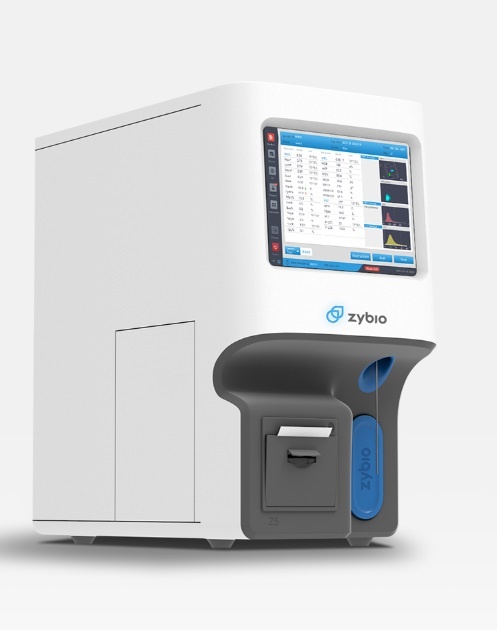

Hematology analyzer Z5
    Z5 is an evolved 5-diff hematology analyzer with compact design that eclipses traditional 5-diff hematology analyzer in the market. It is designed for upgrading your blood analysis solutions, which could provide 29 parameters, 5 scatter-grams and 3 histograms by advanced semiconductor laser scattering technology, flow cytometry and impedance method. This Z5 bring you unpromising performance in medium and satellite laboratory via advanced tri-angle scattering technology, optimal hydraulic system and streamlined operation procedure.

Eclipse traditional 5-diff hematology analyzer

l LS shows cellular volume

l MS shows cellular complexity

l HS shows cellular granularity

Bring you better 5 diff differential of WBC via distinctive tri-angle laser scatter, advanced flow cytometry and chemical dye, even on high eosinophilic samples.

 Compared with WBC impedance counting channel, WBC.BASO optical channel can deliver more confident results for basophil measurement.

 Expanded WBC and PLT linearity range, bring you more accurate result for WBC and PLT result, especially for low values.

 Enable all possibilities beyond your expectation

l CBC + 3 DIFF with 25 reportable parameters and 4 research parameters.

l 3 histograms for WBC, RBC and PLT, 2 2D-scattergrams and 1 3D-scattergram for WBC differentiation, and 1 2D-scattergram for WBC/BASO counting.

l Only 18 μL sample volume is required for venous and capillary whole blood test.

l Only three reagents for CBC + DIFF mode test with optimized liquid handling system, help reduce reagent consumption.

l Only 1 or 2 clicks to access main work-flow interface with intuitive software navigation menu and HD touch screen.

 Enlighten small laboratories

l Innovative reaction system, optimized liquid handling systems, small semi-conductor laser source and two lyses built-in, all lead Z5 to a compact device, fit in small and middle labs and clinics.

l Support over 30+ intelligent flags to indicate abnormal blood cell differentiation and morphology.

l One press to shutdown and aspirate probe cleanser for deeply cleaning.

 Expanded clinical performance

Performance

Parameters

Background

Precision

Detection Limits

Carry-over

Linearity Range

Technical Specification

Specification

 Principle

l Flow cytometry + tri-angle laser scatter + chemical dye method for WBC 5-diff differential analysis WBC counting.

l Cyanide free reagent for HGB measurement.

 Mode

CBC, CBC + DIFF

 Throughput

60 samples per hour

Parameters

l 25 reportable parameters: WBC, Lym%, Mono%, Neu%, Bas%, Lym#, Mono#, Neu#, Bas#, Eos#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PCT, PDW, P-LCR, P-LCC.

l 4 research parameters: ALY%, ALY#, LIC%, LIC#.

 Graph

l 3-D DIFF scattergram

l 3 2-D DIFF scattergrams

l 2-D BASO scattergram

l 3 histograms for WBC, RBC and PLT

 Sample Mode

Venous whole blood, capillary whole blood, pre-diluted

 Sample Volume

Venous/capillary whole blood: 18 μL

 Reagent

Z5 LD Lyse, Z5 LB Lyse, Z5 DN Diluent, Probe cleanser

 Calibration

l Manual calibration

l Auto calibration: Fresh blood, calibrator

 QC Rule

L-J, X-B

 Screen

8.4-inch touch screen

 Interface

l 4 usb port for external printer barcode scanner, mouse, keyboard, etc.

l 1 network port, HL7 protocol, support bilateral LIS.

 Storage capacity

≥ 50,000 results including numeric and information

 Power supply

100 V – 240 V ~, 50/60 HZ, 200 VA
